YINGBA OEM & ODM MANUFACTURING
Engineered to your drawing. Manufactured by YINGBA.
Custom solid carbide router bits and CNC carving tools from drawing, sample or written specification—supported by five-axis grinding, process inspection and flexible branding.
PROJECT ROUTES
Standard supply or fully custom production.
- Standard models from stock
- Drawing-based manufacturing
- Sample replication and improvement
- Customer-supplied material processing
- Contract manufacturing
18
High-precision five-axis grinders
4
Rod cut-off and step machines
4
Precision tool inspection instruments
50,000+
Monthly production capacity
CUSTOMIZATION SCOPE
One production partner for the complete tool specification.
We review the intended material, machine, operation and commercial requirements before confirming geometry and production.
01 · DIMENSIONS
Size & geometry
Cutting diameter, cutting length, overall length, shank size, square end, ball nose, tapered, V-groove and custom profiles.
02 · CUTTING STRUCTURE
Flutes & direction
Single-flute, two-flute and multi-flute structures with up-cut, down-cut, compression and straight cutting options.
03 · MATERIAL SYSTEM
Carbide & coating
K10/K20 and micro-grain carbide options, with uncoated, TiN, TiCN, TiAlN, AlTiN and DLC options subject to review.
04 · MARKET READY
Marking & packaging
Your logo, part number or blank tools, with individual boxes, tubes, blister packaging and custom branded packaging.
Every quotation is reviewed against the intended workpiece material, machine, cutting direction and commercial requirements.
SPECIFICATION GUIDE
Open only the parameter group you need.
Dimensions and standard shank options
3.175 mm (1/8 in), 4 mm, 6 mm, 6.35 mm (1/4 in), 8 mm, 10 mm, 12 mm and 12.7 mm (1/2 in). Cutting diameter, cutting length and overall length can be customized.
Flute count and cutting direction
Single-flute, two-flute and multi-flute designs. Up-cut, down-cut, compression and straight flute structures are reviewed against chip evacuation and edge-finish requirements.
Tool geometry
Square end, ball nose, tapered, V-groove, straight, profiling and custom geometries. Drawings or samples are recommended for non-standard profiles.
Carbide, coating and finishing
Standard K10/K20 and micro-grain carbide options. Uncoated, TiN, TiCN, TiAlN, AlTiN and DLC coating options are confirmed according to the application.
Laser marking and packaging
Laser marking can include your logo or part number, or tools can remain blank. Packaging options include individual boxes, tubes, blister packs and custom branded packaging.
HOW WE WORK
A clear route from requirement to repeat order.
Each project moves forward only after the relevant specification, sample or production checkpoint has been reviewed. Final tolerances, quantities and inspection records are agreed project by project.
STEP 01
Send requirements
PDF, DWG, DXF, sample photo or written specification.
STEP 02
Technical review
Feasibility, geometry and production method are reviewed.
STEP 03
Sample confirmation
A sample is produced for inspection or cutting trials when required.
STEP 04
Batch production
Approved specifications move into controlled batch production.
STEP 05
Inspect & ship
Dimensions, concentricity, edge and packaging are checked.
MANUFACTURING EVIDENCE
Production capacity buyers can see.

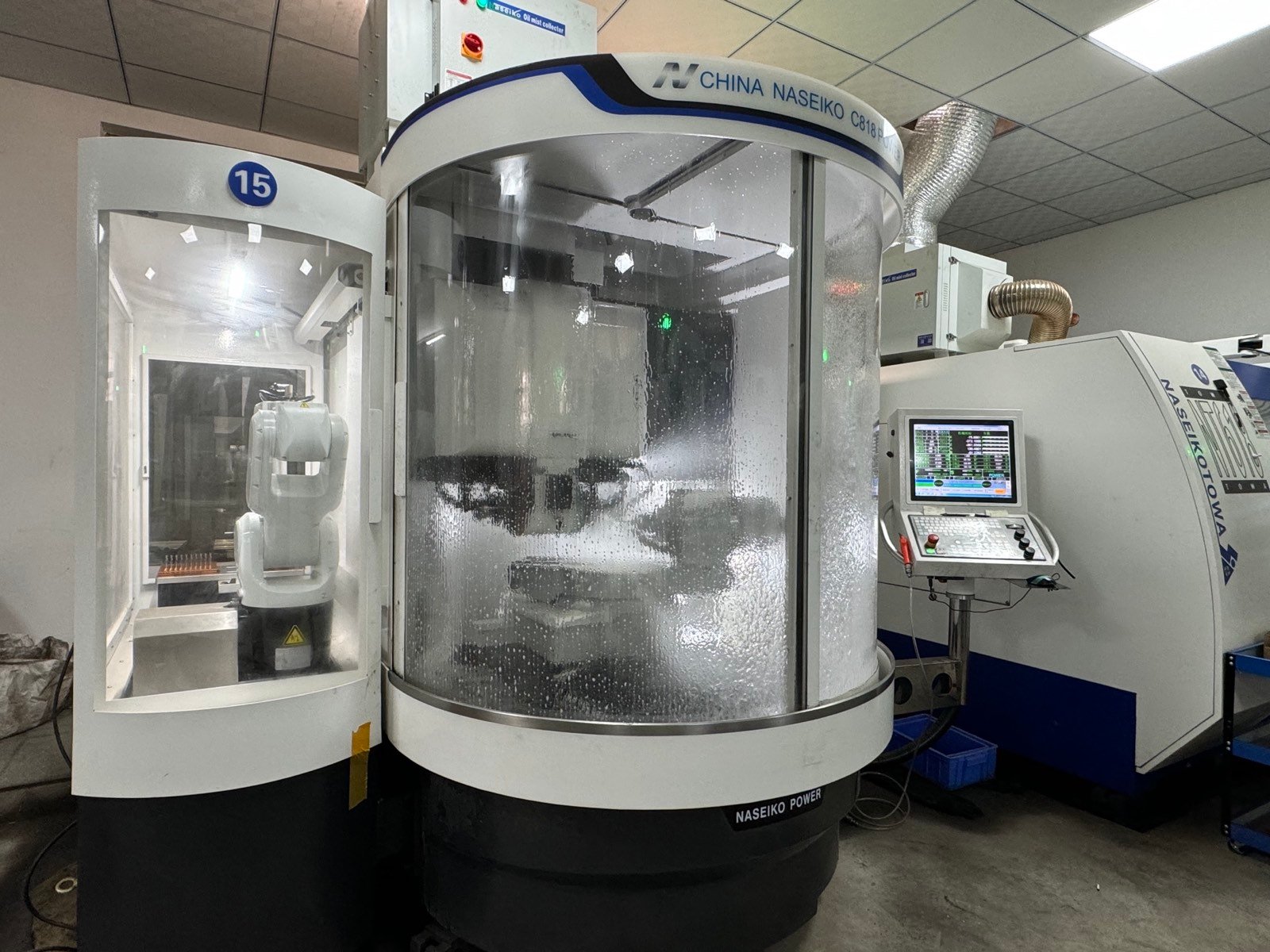

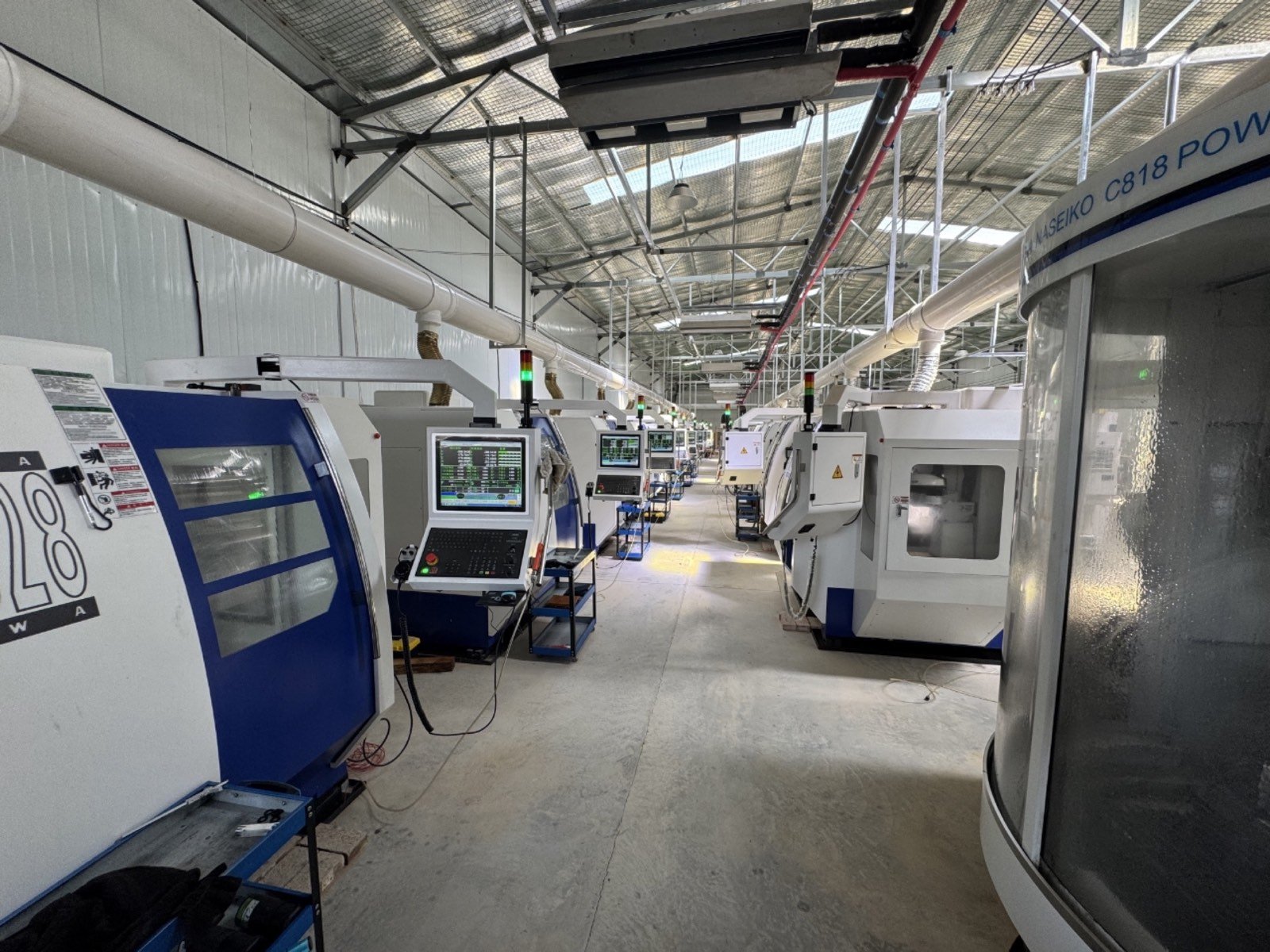

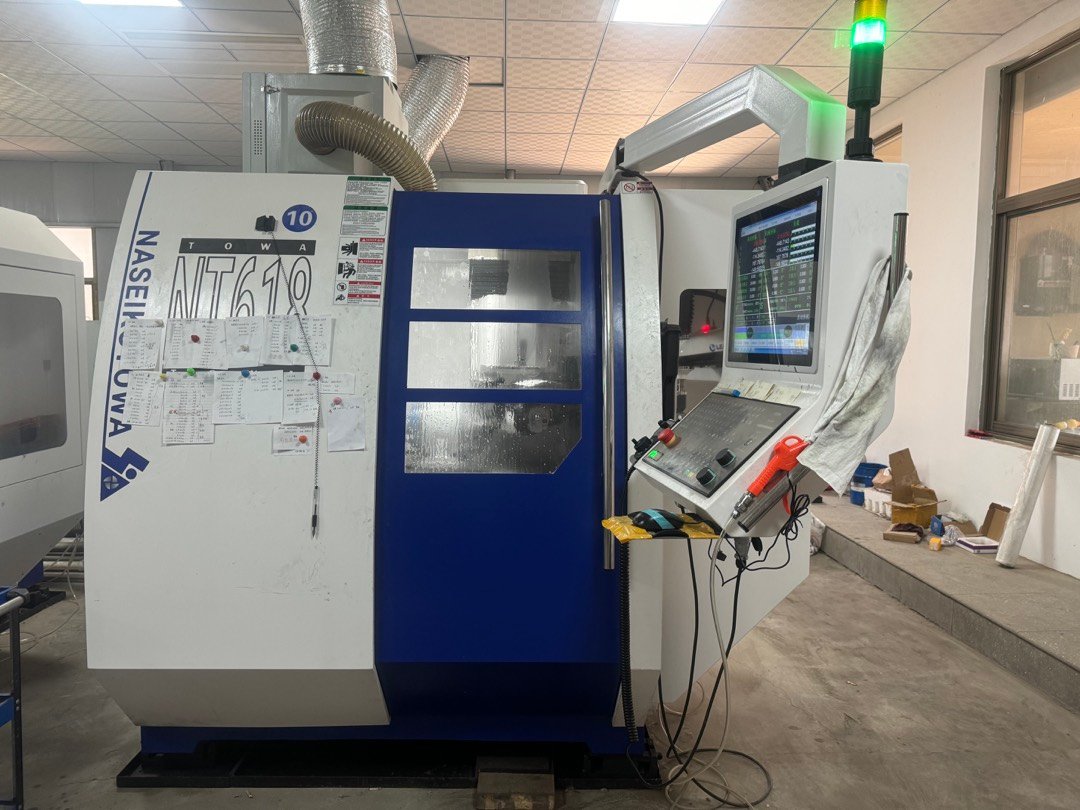

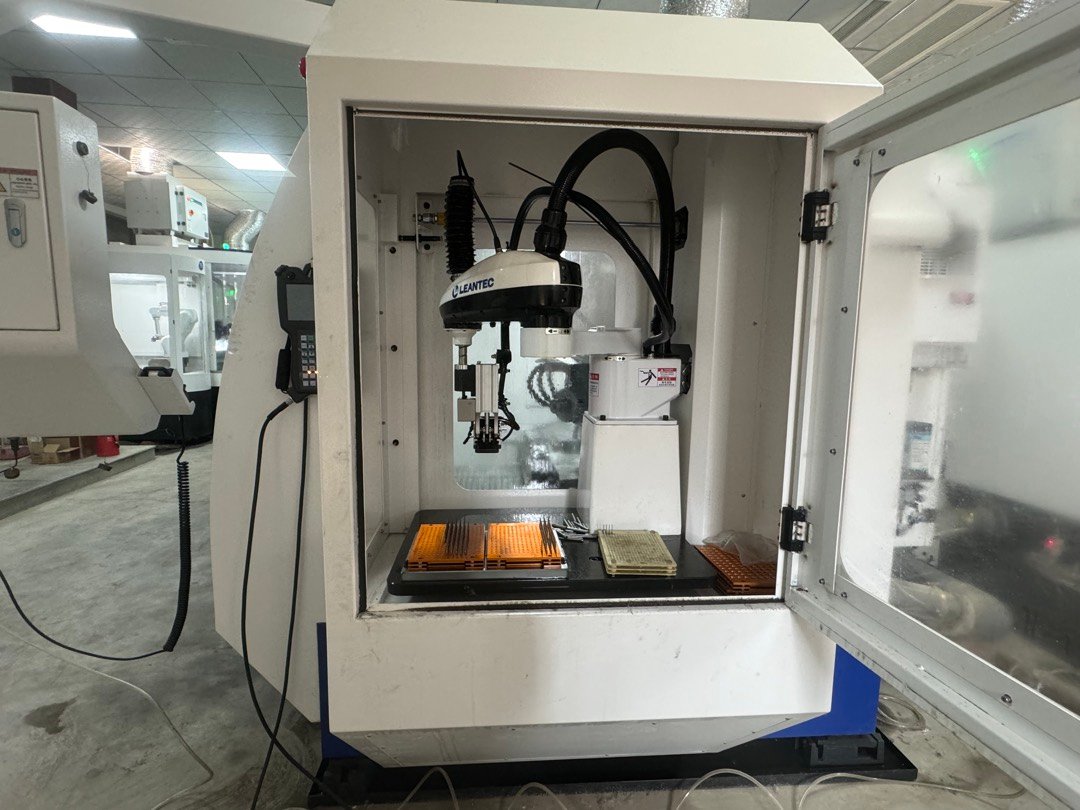

Five-axis tool grinding and automated loading support repeatable production. Standard models are held in inventory, while non-standard projects are reviewed against the buyer’s application and drawing.
QUALITY & DOCUMENTATION
Inspection before the project becomes a shipment.
Four precision tool quality inspection instruments support dimensional and geometry verification. Inspection scope, tolerances and reporting requirements are confirmed with each OEM/ODM project.
- Dimensional and geometry checks
- Concentricity and cutting-edge review
- Quantity, marking and packaging verification
- CE Attestation of Conformity available for review

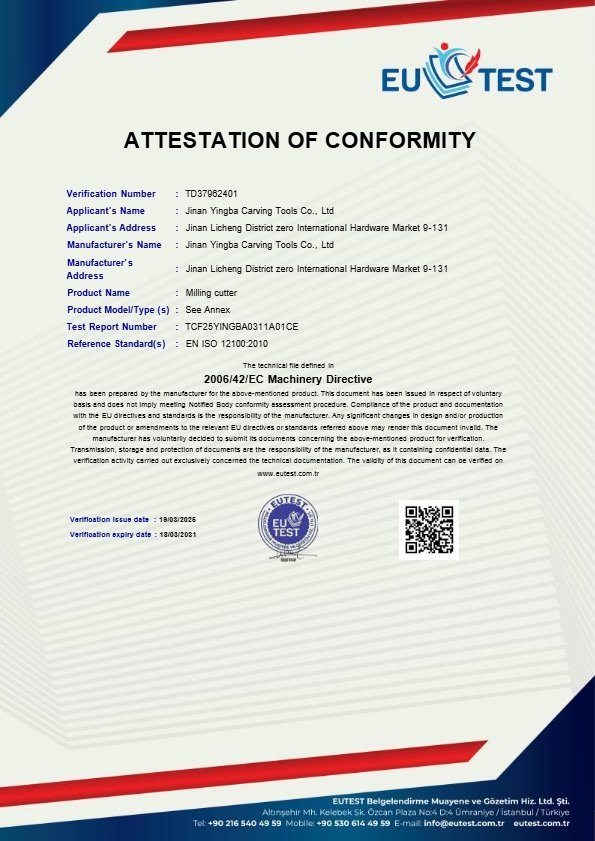

CE Attestation
Open the document for a larger view. Product applicability can be confirmed during supplier qualification.
PREPARE YOUR INQUIRY
Send enough information for an efficient technical review.
If some details are not yet available, send what you have. Our team will identify the remaining questions before quotation.
Recommended information
- Drawing, sample image or existing part number
- Workpiece material and operation
- Machine, spindle and collet information
- Required dimensions and tolerances
- Estimated quantity and target schedule
- Marking and packaging requirements
COMMON PROCUREMENT QUESTIONS
Useful answers before you send a drawing.
Which drawing formats can I send?
PDF, DWG and DXF are preferred. Clear sample photos and written specifications can also be used for an initial review.
Can you make a sample before mass production?
Yes. Sample production and confirmation can be arranged according to the project, specification and required validation method.
Do you accept customer-supplied materials or contract production?
Yes. Customer-supplied material processing and contract manufacturing can be reviewed based on material condition, drawing, quantity and inspection requirements.
Can I buy standard models without developing a custom tool?
Yes. YINGBA maintains inventory for many standard models. Send the size, application and quantity so availability can be checked.
